23.08.25 금

2023. 8. 31. 01:40·Study/🌱 SeSAC

tableview register 등등 클로저 구문에

imageview frame 지정 시점

💡 CustomTableViewCell 구현하기

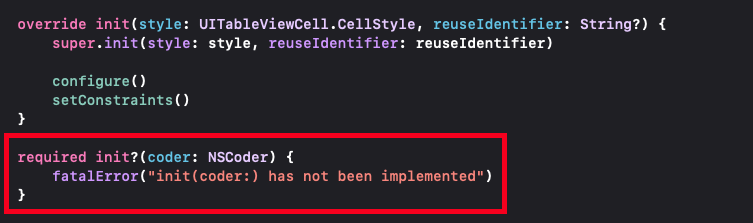

✔️ UITableViewCell 생성


→ 인터페이스 빌더 상에서 셀을 구현할 때 작동한다.

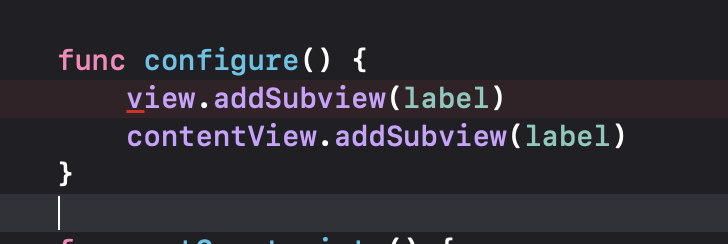

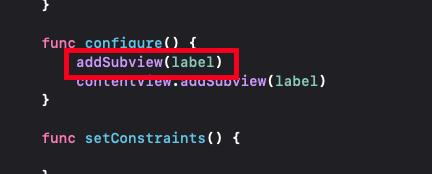

✔️ view.addSubView / contentView.addSubView


view.addSubView

→ uiViewController의 변경할 수 없는 기본 view 위에 얹는 것


tableViewCell은 Content View위에 다른 뷰들이 올라가는 것이다.


⇒ 때문에 addSubView를 할 때 view가 아닌 contentView 위에 올려야 한다!


contentView가 아닌 tableViewCell위에 올리는 것은 오류가 발생하지는 않지만 레이아웃 적용이 되지 않는다.

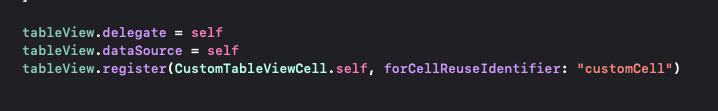

✔️ 커스텀 셀 등록


CustomTableViewCell로 타입캐스팅

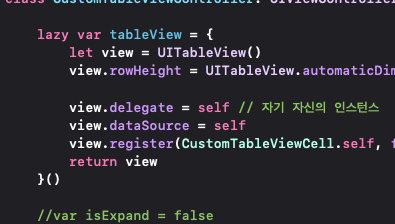

테이블 뷰 관련 코드를 클로저 구문 안에 넣기


🔎 인스턴스 생성 순서


⇒ viewDidLoad()보다 클로저 구문이 먼저 실행된다.

CustomTableViewController 인스턴스 생성 직전에 클로저 구문이 우선 실행됨


클로저 구문 내부에서 초기화를 실행하면 인스턴스가 아직 생성되지 않은 시점이기 때문에 초기화를 할 수 없다.

지연 초기화

lazy var로 viewdidload 시점 이후에 초기화를 하도록 한다.

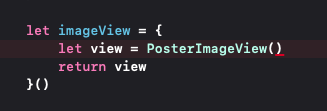

💡 UIImageView frame


이미지 뷰의 특성상 초기화 시 frame 크기를 지정해줘야 한다.


프레임 크기 지정해야 하지만 초기화 이후에 constraints를 지정하기 때문에 지정한 크기가 의미 없다.


.zero로 빈 값을 지정해줌


이미지 뷰 초기화 시 frame의 크기가 0이기 때문에 cornerRadius가 적용되지 않는다.

뷰 초기화 후에 제약조건 설정 시 크기를 설정해 주기 때문에 크기가 0인 상태로 적용이 된다.

때문에 cornerRadius 조건이 0으로 들어가게 된다.

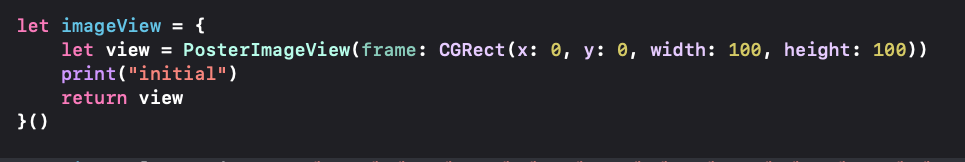

크기를 100, 100으로 지정했다면?


디자인 적용 시 크기가 100이기 때문에 corner radius가 50으로 계산 된 상태로 적용된다.

📍 해결 방법 - layoutSubViews()



💡 UIPageViewController

Intro

Onboarding

Walkthrough

가이드가 될 화면

뷰컨을 배열로 관리하여 페이지 뷰컨이 컨테이너 역할만 하는 것

가이드 화면 1이 등장 후 다음 가이드 화면 2가 나오는 형식

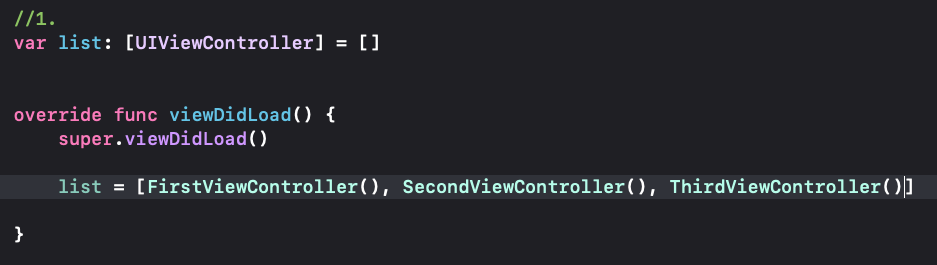

  1. 인트로 화면을 몇 개 사용할 것?
  2. 스크린샷_2023-08-25_오전_11.41.02.png
  3. 프로토콜 호출viewControllerBeforeviewControllerAfter
  4. 사용자가 스와이프 했을 때 현재 화면 다음 화면을 준비 또는 마지막 화면임을 알려줌
  5. 사용자가 스와이프 했을 때 이전 화면 또는 첫 화면임을 알려줌
  6. Untitled.png

📌 firstIndex

let example = [1, 2, 3, 1, 2, 6, 7, 8]   example.firstIndex(of: 2) // -> 1   example.firstIndex(of: 6) // -> 5

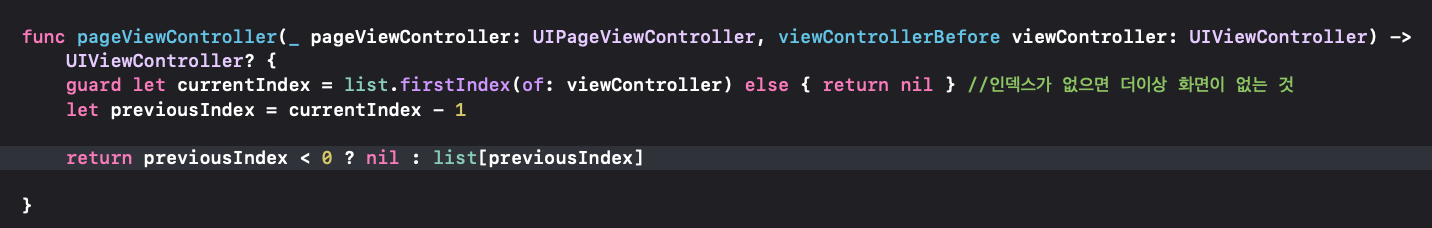

✔️ viewControllerBefore


현재 보고있는 하나 더 전의 인덱스의 뷰컨을 리턴

첫번째 화면이면 nil을 리턴함

func pageViewController(_ pageViewController: UIPageViewController, viewControllerBefore viewController: UIViewController) -> UIViewController? {         guard let currentIndex = list.firstIndex(of: viewController) else { return nil } //인덱스가 없으면 더이상 화면이 없는 것         let previousIndex = currentIndex - 1                  return previousIndex < 0 ? nil : list[previousIndex]              }      func pageViewController(_ pageViewController: UIPageViewController, viewControllerAfter viewController: UIViewController) -> UIViewController? {                  guard let currentIndex = list.firstIndex(of: viewController) else { return nil }                  let nextIndex = currentIndex + 1                  return nextIndex >= list.count ? nil : list[nextIndex]     }

✔️ 화면 순서 지정


direction → .reverse 하면 순서 반대로!


페이지 넘기는 것이 사용자 입장에서 불편할 수 있음

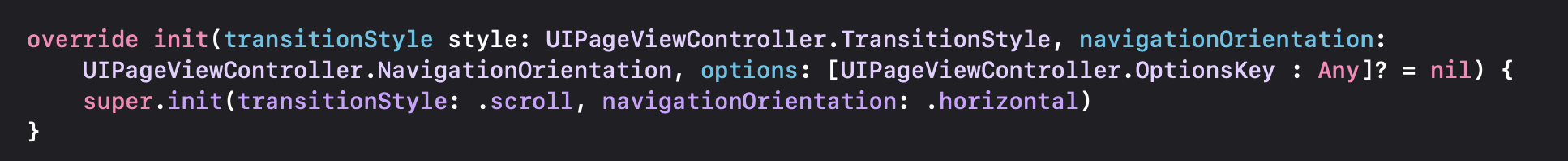

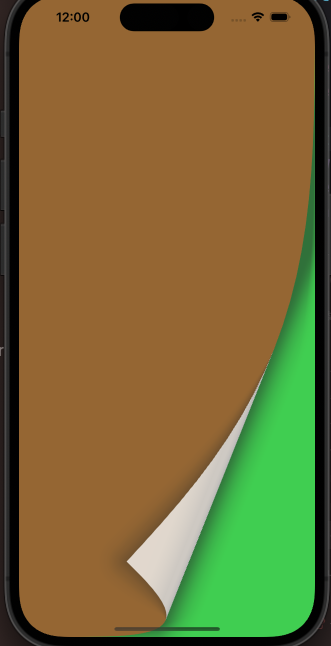

init으로 페이지 넘기는 스타일 설정이 가능하다

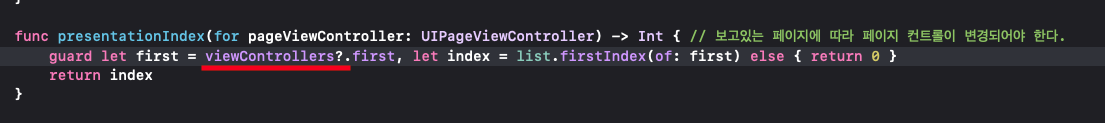

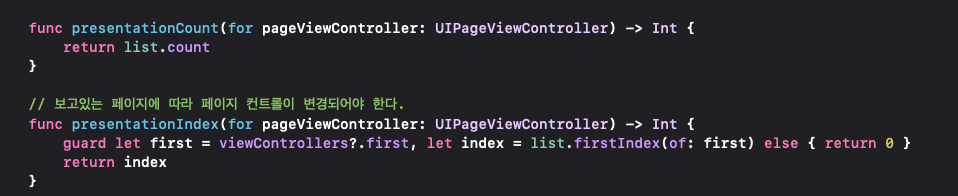

페이지가 얼마나 남았는지 사용자에게 알려줘야 한다!


UIPageViewController가 기본으로 가지고 있는 viewController가 있음


페이지 컨트롤 위치 커스텀은 안됨 → 별도로 구현해야 함

페이지 컨트롤 컬러 변경은 가능함

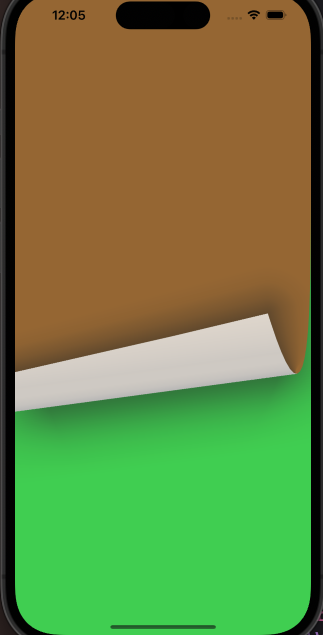

pageCurl style, vertical일 때는 사용이 불가능 함

class OnboardingViewController: UIPageViewController,                                     UIPageViewControllerDelegate, UIPageViewControllerDataSource {      //1.     var list: [UIViewController] = []          override init(transitionStyle style: UIPageViewController.TransitionStyle, navigationOrientation: UIPageViewController.NavigationOrientation, options: [UIPageViewController.OptionsKey : Any]? = nil) {         super.init(transitionStyle: .scroll, navigationOrientation: .horizontal)     }          required init?(coder: NSCoder) {         fatalError("init(coder:) has not been implemented")     }               override func viewDidLoad() {         super.viewDidLoad()                  list = [FirstViewController(), SecondViewController(), ThirdViewController()]         view.backgroundColor = .lightGray         delegate = self         dataSource = self                  guard let first = list.first else { return }         setViewControllers([first], direction: .forward, animated: true)              }          func pageViewController(_ pageViewController: UIPageViewController, viewControllerBefore viewController: UIViewController) -> UIViewController? {         guard let currentIndex = list.firstIndex(of: viewController) else { return nil } //인덱스가 없으면 더이상 화면이 없는 것         let previousIndex = currentIndex - 1                  return previousIndex < 0 ? nil : list[previousIndex]              }      func pageViewController(_ pageViewController: UIPageViewController, viewControllerAfter viewController: UIViewController) -> UIViewController? {                  guard let currentIndex = list.firstIndex(of: viewController) else { return nil }                  let nextIndex = currentIndex + 1                  return nextIndex >= list.count ? nil : list[nextIndex]     }          func presentationCount(for pageViewController: UIPageViewController) -> Int {         return list.count     }          // 보고있는 페이지에 따라 페이지 컨트롤이 변경되어야 한다.     func presentationIndex(for pageViewController: UIPageViewController) -> Int {         guard let first = viewControllers?.first, let index = list.firstIndex(of: first) else { return 0 }         return index     }      }

container view


viewController 안에 viewController 넣기

viewController 내에 page viewController 넣어 사용하기 → 컬렉션 뷰처럼 사용


코드 구현 매우 복잡함 → 값 전달 구현이 힘들다
